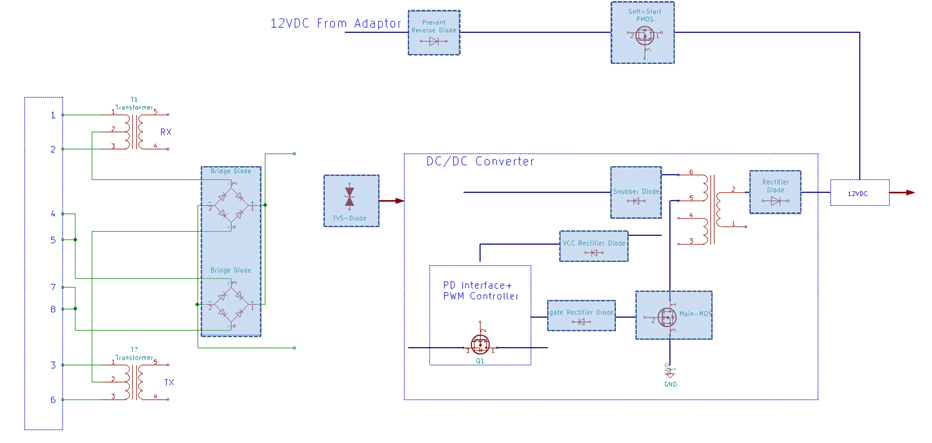

Main Power Bridge Diode

SS14A*4

MBSK110S

Snubber Diode

RS1D

ES1D

Rectifier

Diode

SS510

SS10U100

SS8U100

Prevent Reverse Diode

SS54/SSL54

SS34/SSL34

Main

MOS

YJG15N15B

YJS05N15B

YJG18N10A

Soft-Start PMOS

YJG30P10A

TVS

SMCJ64CA

SMCJ58CA

SMBJ64CA

SMBJ58CA

VCC

1N4148W

BAS316
